取样针（Sampling Cannula- Hason)
发布于2017-11-12 23:11 文章来源：未知
 |

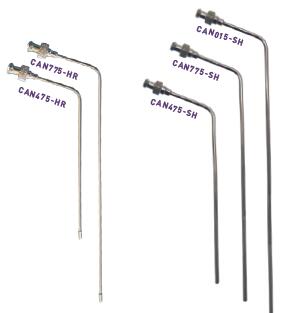

取样针 COMPATIBLE SAMPLING CANNULA |
 |
♦几乎每一个溶出实验都需要将样品提取出来并作检测，最为关键的地方在于，取样方法不能对样品的溶出测试结果产生不利的影响。取样失误是非常常见的错误，常常会造成最后的结果发生重大偏差。USP对于取样点的规定是：“取样点应在取样器的顶端和浆轴或转篮顶端的中间区域，距离溶出杯杯壁不少于1.0厘米。取样点的位置是非常重要的，同时取样工具也同样重要。” ♦取样的主要因素：
►取样位置：取样位置对于溶出检测结果有很大的影响，对于500ml到900ml不同大小的溶出杯，取样位置都是不同的。
►取样针长度：不同长度的取样针匹配不同大小的溶出杯，120mm长的取样针用于900ml，195mm长的取样针用于500ml，我们还能提供加长的取样针。 ►取样针材质：QLA的取样针由不锈钢或者PEEK制成，不会和样品发生反应。 ►取样塞：可以有效的保证取样针可以从样品深处成功取样。 |
| Part No. | Description | OEM Ref. |
| CAN475-HR | 4.75"(120mm) Bent 316 SS Cannula with SS Luer Lock & Perm SS Tip | QLA |
| CAN775-HR | 7.75"(195mm) Bent 316 SS Cannula with SS Luer lock & Perm SS Tip | QLA |
| CAN475-SH | 4.75"(120mm) Bent 316 SS 1/8" (3.2mm) OD Cannula with SS Luer Lock | 95-590-002 |
| CAN775-SH | 7.75"(195mm) Bent 316 SS 1/8" (3.2mm) OD Cannula with SS Luer lock | 95-590-001 |
| CAN015-SH | 15"(380mm) Bent 316 SS 1/8" (3.2mm) OD Cannula with SS Luer Lock | 95-590-003 |
| CANS15-SH | 15"(380mm) Staight 316 SS 1/8" (3.2mm) OD Cannula with SS Luer lock | QLA |
| CAN475-PH | 4.75"(120mm) Bent PEEK 1/8" (3.2mm) OD Cannula with PEEK Luer Lock | 95-590-005 |
| CAN775-PH | 7.75"(195mm) Bent PEEK 1/8" (3.2mm) OD Cannula with PEEK Luer lock | 95-590-004 |
| CAN015-PH | 15"(380mm) Bent PEEK 1/8" (3.2mm) OD Cannula with PEEK Luer Lock | 95-590-006 |
| CANS15-PH | 15"(380mm) Straight PEEK 1/8" (3.2mm) OD Cannula with PEEK Luer lock | QLA |
| CAN475-SHL | 4.75"(120mm) Bent 316 SS 1/8" (3.2mm) OD Cannula with Kynar Luer Lock | QLA |
| CAN775-SHL | 7.75"(195mm) Bent 316 SS 1/8" (3.2mm) OD Cannula with Kynar Luer lock | QLA |
| CAN475-062L | 4.75"(120mm) Bent 316 SS 1/16" (1.6mm) OD Cannula with Kynar Luer Lock | QLA |
| CAN775-062L | 7.75"(195mm) Bent 316 SS 1/16" (1.6mm) OD Cannula with Kynar Luer lock | QLA |
| CANSTP-125-31 | Hanson 1/8" (3.2mm) OD Cannula Stopper for VanKel EaseAlign Cover | QLA |
| CANSTP-125-53 | Hanson 1/8" (3.2mm) OD Cannula Stopper for Distek Cover | QLA |
| CANSTP-065-31 | Distek/Hanson 1/16" (1.6mm) OD Stopper for VanKel EaseAlign Cover | QLA |
| CANSTP-065-53 | Distek/Hanson 1/16" (1.6mm) OD Cannula Stopper for Distek Cover | QLA |
| 74-104-202 | 500mL Fixed Vessel Mount Sample Probe, 1/16" (1.6mm) OD for Vision | 74-104-202 |
| 74-104-203 | 900mL Fixed Vessel Mount Sample Probe, 1/16" (1.6mm) OD for Vision | 74-104-203 |
| STPR-HR | Cannula Stopper for Vision | 74-104-205 |
